HAIPICK A42T E2 – TELESCOPIC GRAPPLING HOOK ACR – AUTONOMOUS MOBILE ROBOT FOR HANDLING PICKING CONTAINERS
ACR A42T E2 enables ultra-high-density storage and high-speed autonomous operations for storing, retrieving, transporting, lowering, lifting, and organizing goods in every fulfillment center;
ULTRA-HIGH-DENSITY STORAGE AND EFFICIENCY
-
The system achieves up to 50 picking bins per square meter, each of which is 100% instantly accessible;
-
It can increase order picking and preparation efficiency up to 6 times;
-
A specialized integrated Chain Pick system allows easy access to lower picking bins through sequential chain movement - an effective solution combining maximum density with high performance.

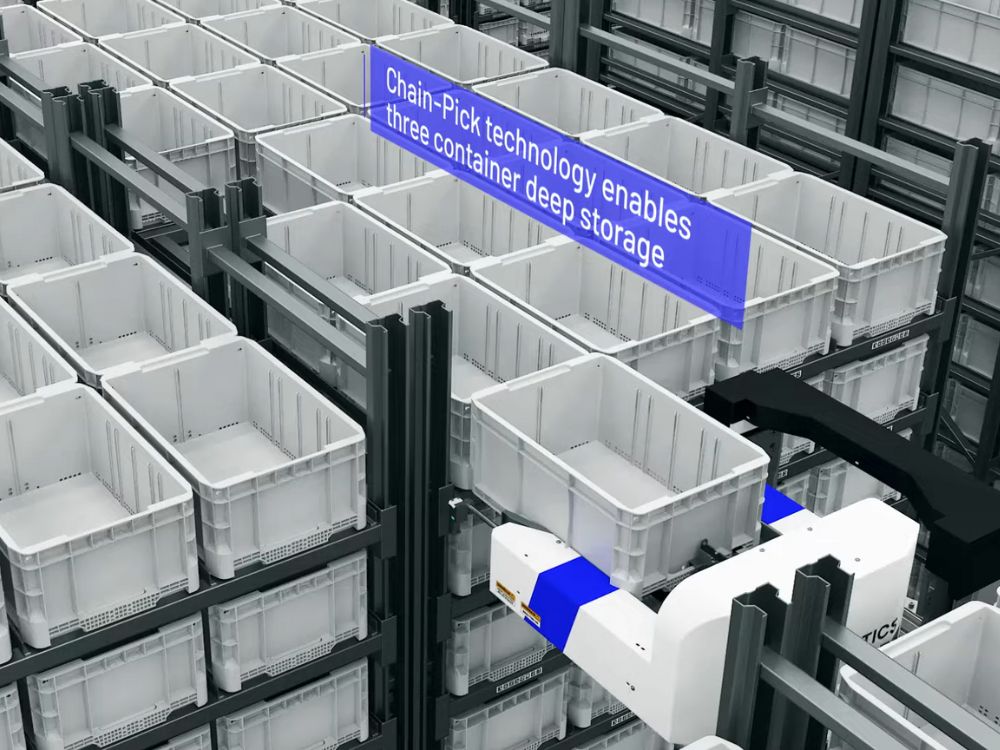

CHAIN PICK TECHNOLOGY WITH GRAPPLING HOOK
-

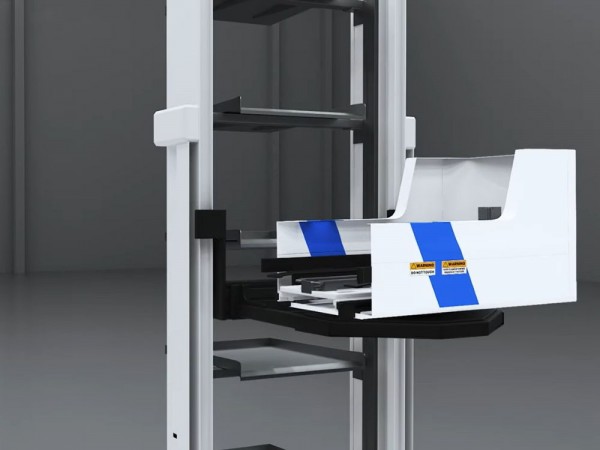

The Autonomous ACR Robot HaiPick A42T E2 can pull multiple containers in sequence, linked like a chain - up to 3 at a time - without needing to move them individually;
-
It stores and transports up to 8 containers simultaneously within its structure, offering unmatched flexibility;
-
It reduces the spacing between picking bins in the Racking System by approximately 60% - down to just 40 mm. The side clearance between containers is reduced to 0 мм, enabling extremely dense storage;
MAXIMUM HEIGHT, AND FULFILLMENT EFFICIENCY WITH AUTONOMOUS HAIPICK A42T E2 ROBOTS
-
HaiPick A42T E2 ACRs reache up to 12 m in height during picking operations;
-
There autonomous robots can increase storage density by up to 89%;
-
Up to 63 picking bins per hour and 70% improved picking efficiency - no need to scan barcodes for each operation;
-
Lifting speed of up to 0.93 m/s, with a pick/place cycle time of just 2.7 seconds;
SAFETY AND AUTONOMY OF THE ACR A42 – TELESCOPIC GRAPPLING HOOK PICKING ROBOT
-
100% autonomous navigation, LiDAR-based obstacle avoidance, and automatic charging of its powerful industrial battery;
-
Integrated emergency stop buttons (in four directions), anti-drop protection, audio and visual alarms;
-
Certified with CE and NRTL safety standard;
BATTERY OF THE HAIPICK ACR A42T E2
-
Lithium-iron-phosphate industrial battery (LFP 62) with fast charging in just 39 minutes and over 6 hours of runtime on a full charge;
FLEXIBILITY AND CUSTOMIZATION
-
Supports movement through doors with heights of 5 - 6 meters thanks to its telescopic design - allowing the robot to move between different warehouse zones;
-
Platform adaptable to specific needs - height, color, and other customizations;
