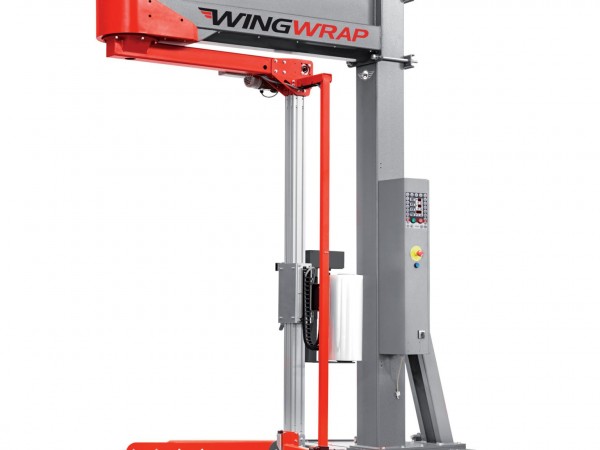

Rotary arm wrapping machine PKG WINGWRAP

Semi-atomatic rotary arm stretch wrapping machine with all performances
image_0

Semi-automatic, easy-to-use stretch wrapper with rotary arm, great operational reliability, robust and complete with all performance features. Ideal for use with standard or pre-stretched films. What differs the rotary arm machines from turntables is that the pallet stays stationary on the ground - no loading and unloading is needed and no turning of the pallet during wrapping, which makes this machines more suitable for light and unstable loads. WINGWRAP can be modified with longer arm and column to wrap bigger pallets/loads. The top version MPS2 carriage can pre-stretch the film up to 400% ensuring maxmimum savings.



Technical data WINGWRAP MB WINGWRAP EB WINGWRAP MPS WINGWRAP MPS2
Carriage type Mechanical brake (MB) Electric brake (EB) Electric brake with pre-stretch (MPS) Electric brake with pre-stretch (MPS2)
Film stretch 20-50% (mechanical) 20-50% (mechanical) 150/200/250/300%
(motorized fixed)
120-400%
(motorized variable)
Film tenssion adjustment Mechanical Electric Electric Electric
Recommended stretch film ENOxtreme ENOxtreme ENOevopower / ENOfuture ENOfuture
Max. pallet size 1200х1200 / 1400x1400 / 1500x1500 / 1600x1600 / 1700x1700 mm
Max. wrapping height 2500 / 3000 mm
