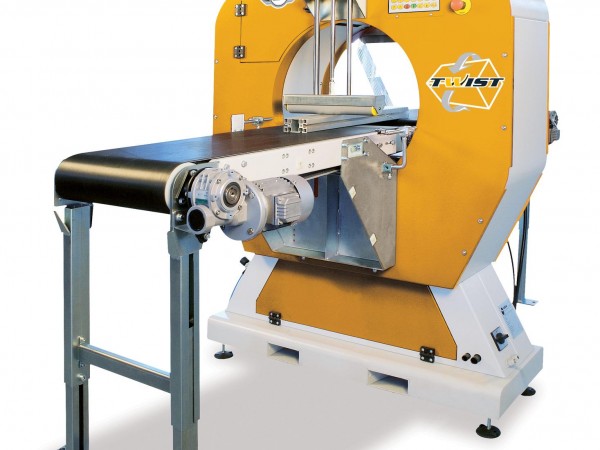

Automatic horizontal wrapping machine PKG TWIST Auto

Automatic horizontal stretch wrapping machine. Simple, robust and perfect for long products.
image_0

Automatic horizontal wrapping machine for boxes and long materials. What characterizes model TWIST AUTO is productivity, durability and high performance. Available in several variants, the main differences being the diameter of the wrapping ring from 420 to 1400 mm and the width of the stretch film used by the machine 125 or 250 mm.

  • Automatic cutting and clamping unit.
  • Start & Stop wrapping cycle automatic with photocells.
  • Standby adjustable from control panel (after a certain number of minutes without products).
  • Power supply: 230V / 50Hz.
  • Control panel
  • Minimum number of wraps: 3
  • Pneumatic power: 6 Bar
  • Power transmission by flat belt
  • Bobbin internal diameter: 76 mm
  • Bobbin external diameter: 250 mm

Technical features TWIST 420 TWIST 620 TWIST 1000 TWIST 1400
Diameter ring 420 mm 620 mm 1000 mm 1390 mm
Max RPM 90 RPM 70 RPM 50 RPM 30 RPM
Height bobine 125 mm 125 mm 125 mm 250 mm
