Case sealer COMARME GEM 52 520 670 820

Semi-automatic uniform case sealer
image_0

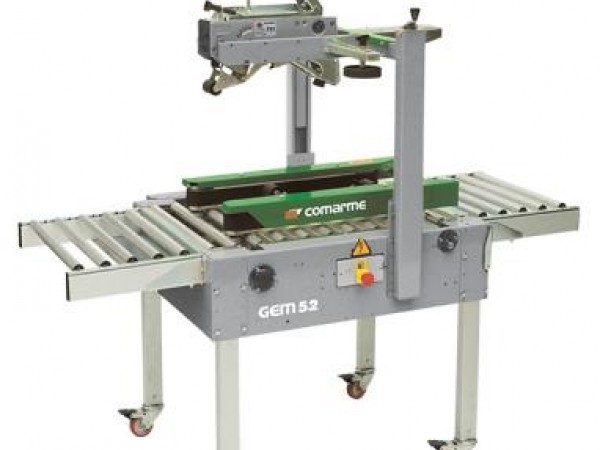

COMARME GEM 52 is a semi-automatic, basic case sealer. Can be ordered with one or two tape heads. Model is compact in size, allowing it to be placed in confined spaces. GEM 52 is an indispensable assistant for any production where the finished product is put in a box because it is faster and more economical than manual taping.

GEM 520/670/820 is semi-automatic carton sealer with autoadhesive tape for the top and bottom sealing of American-type medium and large boxes, for uniform carton size batches with manual dimensioning. The upper taping unit has a patented system which, be regulating a spring, enables the subsequent weight on the box to be present and therefore any differences in height of the boxes to be absorbed. The boxes are fed by lateral conveyor belts, driven by a single motor thus optimising even sliding of the boxes and ensuring perfect alignment of the upper and lower flaps which is turn guarantees perfect dealing. The adjustments are fast and easy by means of handwheels, also allowing its use by non-specialist operators. The machine, if combined with infeed and outfeed conveyors, represents a simple, fast and economical packaging station.



Technical data GEM 52 GEM 520 GEM 670 GEM 820
Productivity 800 box/hour 1000 box/hour 1000 box/hour 1000 box/hour
Box Lenght min. 150 mm min. 150 mm min. 150 mm min. 150 mm
Box Width 100 - 500 mm 100 - 520 mm 100 - 670 mm 100 - 820 mm
Box Height 150 - 500 mm 100 - 520 mm 120 - 670 mm 120 - 820 mm
