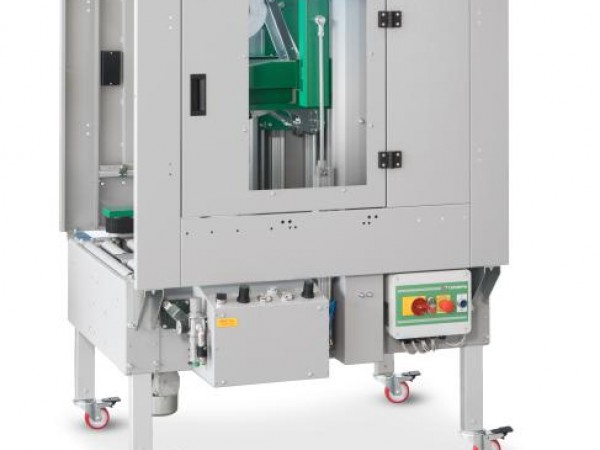

Semi-automatic case sealer COMARME GEM X520 X670 X820

Semi-automatic random case sealer with lateral vertical belts
image_0

Automatic, self-dimensioning carton sealers with self-adhesive tape for top and bottom sealing of random American-type boxes. The machines model Gem X are ideal to seal cartons, with different dimensions in length, width and height which are randomly fed into the taping machine. The taping head and the two side belts adjust automatically to each box size. The boxes are fed by lateral conveyor belts, driven by a single motor thus optimising even sliding of the boxes and ensuring perfect alignment of the upper and lower flaps which in turn guarantees perfect sealing. These models can be used by non-specialist staff and, if combined with infeed and outfeed conveyors, represents a simple, effective and economical packing station.

The machines, when combined with automatic devices for centring and regulating the flow of boxes (DAC ), can also work in lines not controlled by operatives.



Technical data GEM X520 GEM X670 GEM X820
Productivity 300-500 box/hour
Box Lenght min. 200 mm
Box Width 100 - 520 mm 100 - 670 mm 100 - 820 mm
Box Height 100 - 520 mm 120 - 670 mm 120 - 820 mm
