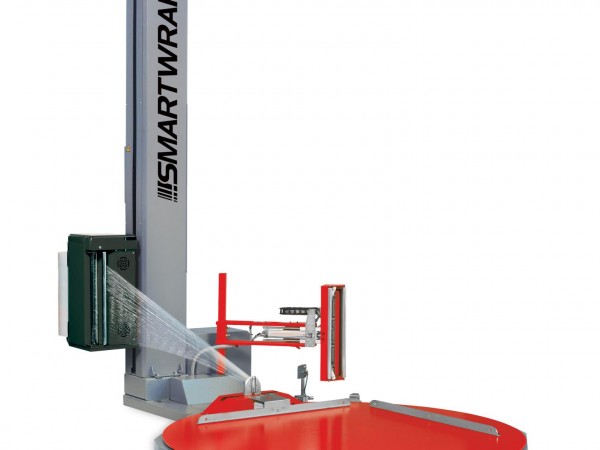

Stretch wrapping machine PKG SMARTWRAP

Stand alone wrapping turntable with clamp and cutting system, simple and reliable
main image

PKG SMARTWRAP is stand alone, semi-automatic stretch wrapping machines. It has all the options of a standard machine with addition of automatic clamp and cutting system for the film. This minimizes the operations from the personal and automize the wrapping cycle.  As option a top pressure unit can be installed, which makes it possible to wrap pallets with very light and unstable loads. Excluding loading and unloading, machine do it all. Available in following platform options:

  • Standard version - standard platform with 75 mm height. Normal ramp with 1,5 m lenght is necessary to load pallets on the machine with pallet truck.
  • Transpallet (TP) version - platform with chanels for easier loading with pallet truck. A much shorter ramp is need, which saves space.
  • Slim Base (SB) -  special low platform, only 25 mm high with short rapms to make loading and unloading from any direction easier and more safe.



Technical data SMARTWRAP EB SMARTWRAP MPS SMARTWRAP MPS2
Carriage type Electric brake (EB) Electric brake with pre-stretch (MPS) Electric brake with pre-stretch (MPS2)
Film stretch 20-50% (mechanical) 150/200/250/300%
(motorized fixed)
120-400%
(motorized variable)
Film tenssion adjustment Electric Electric Electric
Recommended stretch film ENOxtreme ENOevopower / ENOfuture ENOfuture
Turntable diameter 1650/1800/2200 mm
Max. pallet size 1200х1000/1350х1200/1550х1550 mm
Max. pallet weight

1200 kg (TP and SB versions)

2000/3000 kg (Standard version)

Max. wrapping height 2700/3000/3300/3700 mm
Platform height 75 mm (Standard and TP) / 25 mm (Slim Base)
