Three phase industrial vacuum cleaner RGS 20kW

Efficiency, power, sustainability. Suitable for centralized vacuum systems
image_0

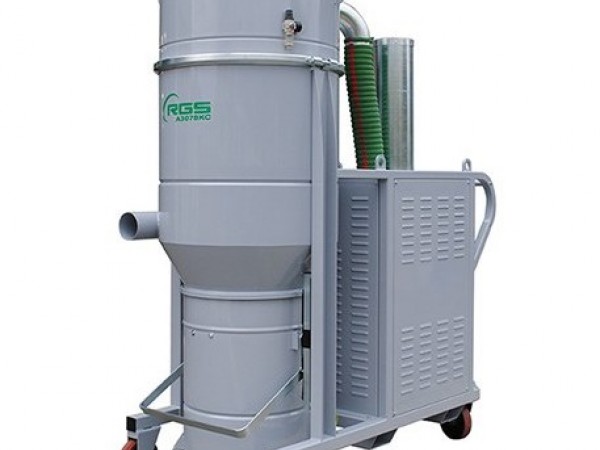

RGS A3078 is an industrial, vacuum machine with exceptional power and durability, with a 20 kW vacuum unit, ideal for long and heavy duty work shifts and with the ability to suck in large quantities of materials or to manage multiple suction points simultaneously. The model comes with a 175 liter waste container, which can be fitted with a lifting clamp for unloading with a forklift, or in combination with separators of 400 or 800 liters. The machine is the ideal solution for extracting large quantities of heavy materials such as sand, cement, gravel and more. The Ø 780 filter consists of 4 cartridges with automatic compressed air cleaning and guarantees excellent filtration efficiency for even the finest dusts.

Main advantages:

  • Machine body Ø780 mm
  • Side channel blower with three phase motor asynchronous placed in the back side into a protective housing
  • Self cleaning system of the cartridges with compressed air
  • Vacuum-meter to control the filter efficiency
  • Waste bin 175 liters
  • Waste bin is on castors and equipped with two handles. As an option it can be fitted with a clamp to take it up with a fork lift
  • Accessories compartment and support for the flex. hose in the front side
  • Support cable reeler in the back side
  • Fixed wheels Ø200mm and revolving wheels with brake Ø200mm
  • Electric switchboard with soft-start and PLC to control the motor, already configurated for remote control
  • ATEX version available as option



Model A3078C A3078KC
Power supply 400V 50Hz 400V 50Hz
Power 20 kW 20 kW
Depression 440 mbar 250 mbar
Air flow 1100 m3/h 2350 m3/h
Container 175 l 175 l
