Three phase industrial vacuum cleaners RGS 8,5 - 12,5 kW

For long and heavy duty modes. Power from 8,5 to 12,5 kW
image_0

Due to their robust construction, these three-phase industrial vacuum machines are the preferred choice in long and heavy duty work shifts where a powerful and efficient machine is required. They are equipped with 8,5, 11 and 12,5 kW vacuum units, a STAR filter Ø 560 with a large filter area (3.4 m2) and a waste container with a capacity of 175 liters.

Main advantages:

  • Machine body Ø560 mm
  • Side channel blower with three phase motor asynchronous placed in the back side into a protective housing
  • Manual filter shaker on top of the filter chamber
  • Vacuum-meter to control the filter efficiency
  • Waste bin 175 liters
  • In the 39l and 65l versions, the waste bin has got the integrated handle and it is equipped with castors
  • Waste bin is on castors and equipped with two handles. As an option it can be fitted with a clamp to take it up with a fork lift
  • Accessories compartment and support for the flex. hose in the front side
  • Support cable reeler in the back side
  • Fixed wheels Ø200mm and revolving wheels with brake Ø200mm
  • Electric switchboard with soft-start and PLC to control the motor, already configurated for remote control
  • ATEX version available as option

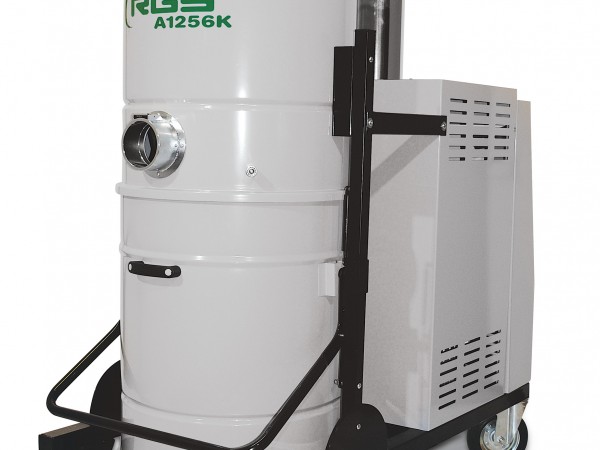

Model A1256K A1556 A1856K
Power supply 400V 50Hz 400V 50Hz 400V 50Hz
Power 8,5 kW 11 kW 12,5 kW
Depression 190 mbar 430 mbar 290 mbar
Air flow 1080 m3/h 540 m3/h 1080 m3/h
Container 175 l 175 l 175 l
